MarCal 16 EWR-V

MarCal 16 EWR-V

• Art. no. 4118807
• Measuring range mm: 0 - 200 mm
• Resolution mm: 0.01 mm
• Depth rod: rectangular
• Data interface: USB, Opto RS-232C, Digimatic
• IP protection category: IP 67

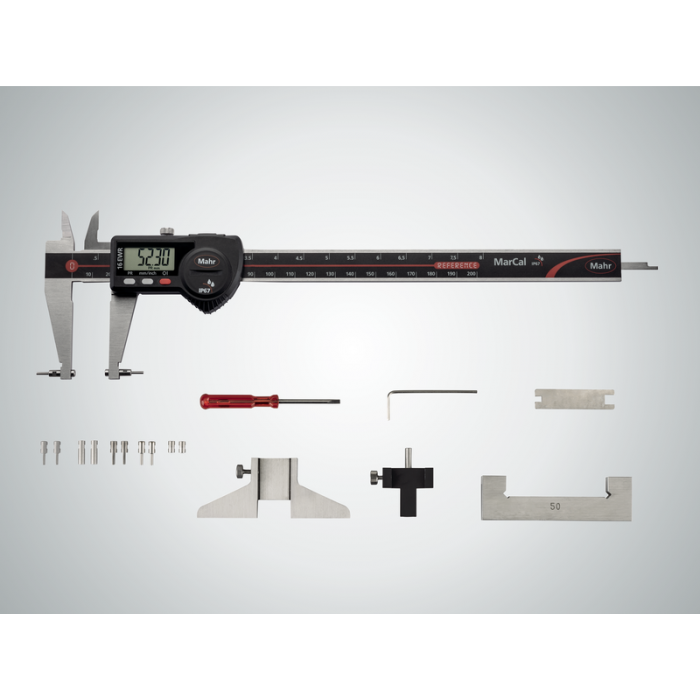

• Package contains: setting gage for inside measurement 16 Eel, measuring force device 16 Ec, depth measuring bridge 16 Em, anvils for outside measurement 16 Eea 1-3, anvils for inside measurement 16Eei 1-3, 4118808 without measuring anvils, adjustment bridge and measuring force equipment, battery, test certificate, instruction manual, case

• High contrast digit display
• Locking screw above
• Lapped guideway
• Measuring blade for inside measurements
• Slide and beam made of hardened stainless steel
• Step measuring function
• Immediate measurements due to the Reference System
• Raised guideway for the protection of the scale
• Excellent resistance against dust, coolants and lubricants
• Dirt wipers are integrated in the slide

Datasheet

For more information please visit the official Mahr website.
