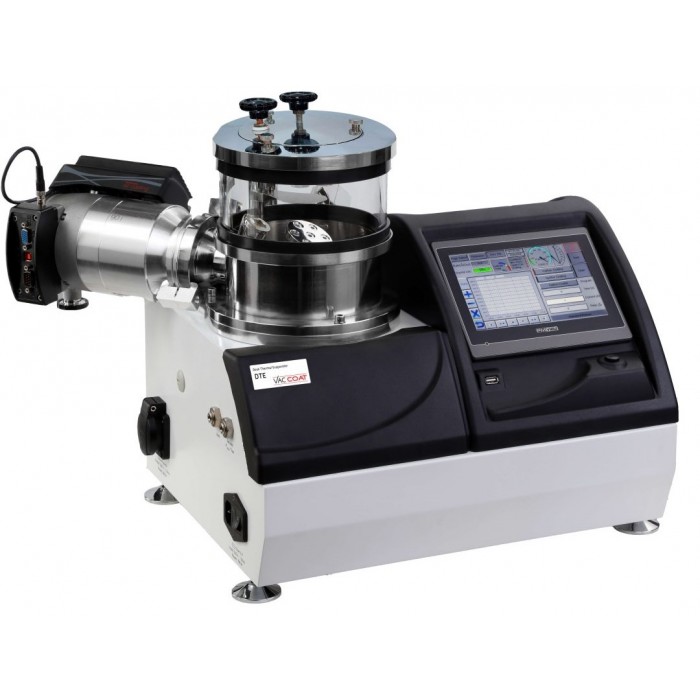

HIGH VACUUM THERMAL EVAPORATOR – DTE

Features of DTE Hardware

• Material evaporation semi-automatic control
• Equipped with a separate DC high-current power supply (max. 12V, 100A)
• 170 mm diameter Borosilicate-SST vacuum chamber
• High vacuum level with built-in turbo pump (Leybold 90 l/s)
• Two-stage rotary (optional diaphragm or scroll) backing pump
• Quartz crystal monitoring system for real time thickness measurement (1 nm precision)
• Electronic shutter
• Two high-current electric feed-throughs for thermal source insertion
• Movable thermal source holder with possible upward or downward deposition configurations
• Automatic venting valve
• Full range vacuum gauge
• S-Clip sample holder on the chamber lead
• 2-inch rotating sample holder on the base plate (optional)
• Sample rotation, height and tilt adjustable (for optional 2-inch sample holder)
• Two-year warranty

Specifications

• Ultimate Vacuum: Less than 4×10-6 Torr
• Low-duration deposition process
• Records and plots parameters displayed on the touch screen
• Transfers curves and deposition process data by a USB port to PC
• 0-12 V, 0-100 A DC high-current power supply
• Utilities: 220V-110V, 50/60HZ- 6/8A
• Instrument Dimensions: 450 Width × 450 Depth × 500 Height mm (without Rack)
• Net Weight: 30 kg  (without backing pump)
