Discotom

Name: Discotom
Brand: STRUERS
Availability: InStock

Discotom

Description

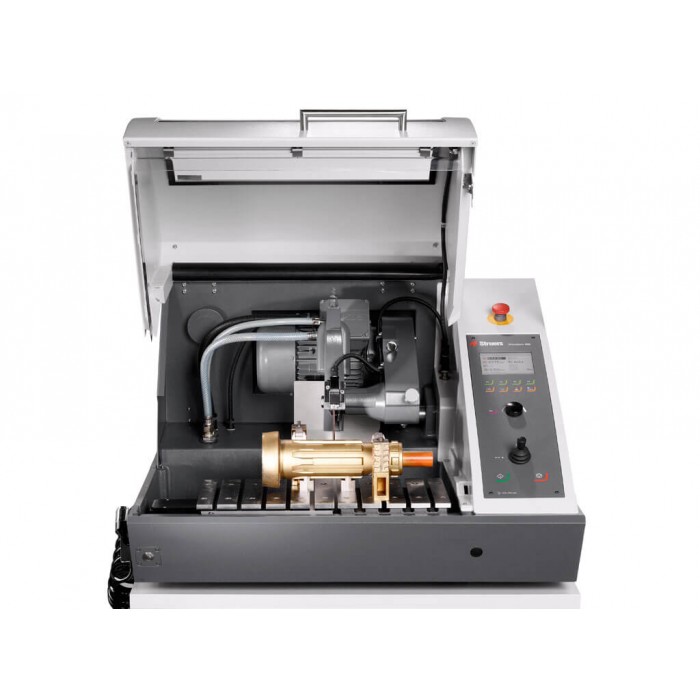

Discotom-10 and Discotom-100 are versatile tabletop cut-off machines, designed to give you a cost-efficient opportunity to expand your cutting capabilities and streamline your cutting processes. Spacious, versatile, and easy to use, Discotom-100 and Discotom-10 deliver exceptional cutting flexibility, with more cutting options that let you clamp and cut all types of workpieces efficiently, with less effort and minimum deformation.

Discotom facts:

OptiFeed – intelligent feed control
AxioWash* (Automatic cleaning)
ExciCut for very hard materials
MultiCut (Serial cutting – results in a number of slices.)

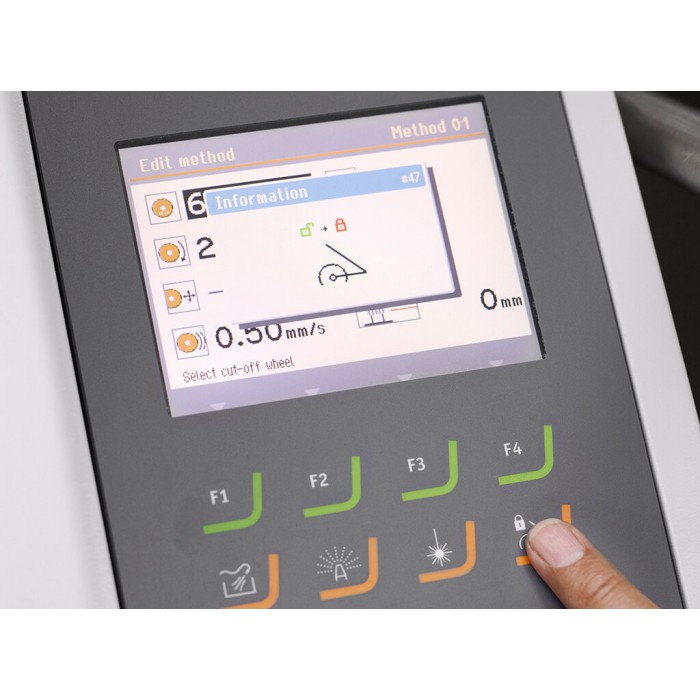

Method Database
Cut-off wheel database

There are two models available for Discotom, Discotom-10 and Discotom-100:

Discotom-10 with fixed table

Automatic cut-off machine with fixed spindle speed (2,850 rpm) and variable automatic feed. 2.2 kW motor. For 250 mm (10") cut-off wheels. Cutting table with 10 mm T-slots. Recirculation Cooling Unit and clamping tools are ordered separately. Optional table unit can be used.

Discotom-10 with automatic X-table

Automatic cut-off machine with automatic X-table, fixed spindle speed (2,850 rpm) and variable automatic feed. 2.2 kW motor. For 250 mm (10") cut-off wheels. Cutting table with 10 mm T-slots. Recirculation cooling unit and clamping tools are ordered separately. Optional table unit can be used.

Discotom-100 with fixed table

Automatic cut-off machine with variable spindle speed and variable automatic feed. 4.0 kW motor. For 300 mm (12") cut-off wheels. Cutting table with 10 mm T-slots. Recirculation Cooling Unit and clamping tools are ordered separately. Optional table unit can be used.

Discotom-100 with automatic X-table

Automatic cut-off machine with automatic X-table, variable spindle speed, and variable automatic feed. 4.0 kW motor. For 300 mm (12") cut-off wheels. Cutting table with 10 mm T-slots. Recirculation cooling unit and clamping tools are ordered separately. Optional table unit can be used.

Datasheet Discotom-10

Datasheet Discotom-100

For more information please visit the official website of Struers.
