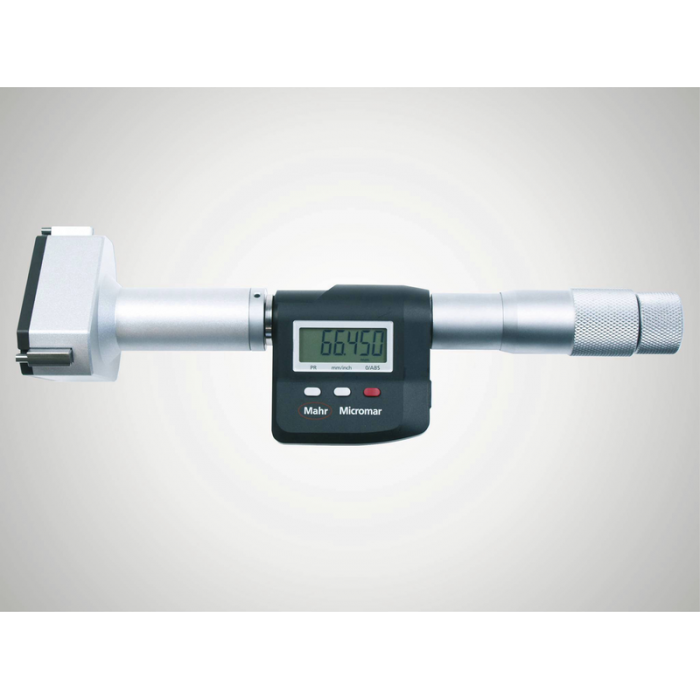

Micromar 44 EWR

Micromar 44 EWR

• Art. no. 4191036
• Digital inside micrometer Micromar 44 EWR
• For measuring:Through holes, Blind holes, Centering shoulders
• IP protection category: IP 52

• Data interface: Digimatic, Opto RS-232C, USB
• DIN 863-4
• Measuring range mm 150 - 175 mm mm
• Resolution mm/inch 0.001 / .00005"
• Package contains: basic units 44 EWg, measuring head 44 Ak, instruction manual, battery, case
• Threaded connection for changing the measuring head
• Self-centering measuring head consists of 3 anvils (offset 3 x 120°)
• Anvils from 12 mm are carbide tipped
• From 12 mm the anvils can be used to measure the bottom of a bore
• From 40 mm all measuring heads are made from aluminium to reduce weight
