Micromar 44 AS

Micromar 44 AS

• Art. no. 4190352
• For measuring:

• Through holes
• Blind holes
• Centering shoulders
• DIN 863-4
• Measuring range mm: 20 - 50 mm mm
• Graduation value mm: 0.005

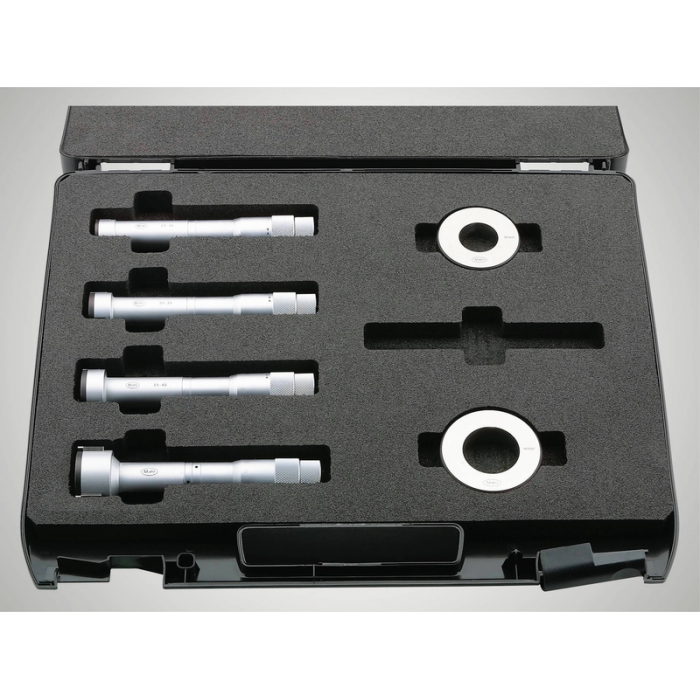

• Package contains: instruction manual, setting rings, allen key, key for replacing measuring heads (from 30 mm), case
• Operating and display units with satin chrome finish
• Stainless spindle is hardened throughout and ground
• Rapid drive with integrated ratchet
• Self-centering measuring head consists of 3 anvils (offset 3 x 120°)
• Anvils from 12 mm are carbide tipped
• From 12 mm the anvils can be used to measure the bottom of a bore
• From 40 mm all measuring heads are made from aluminium to reduce weight

Datasheet

For more information please visit the official Mahr website.
