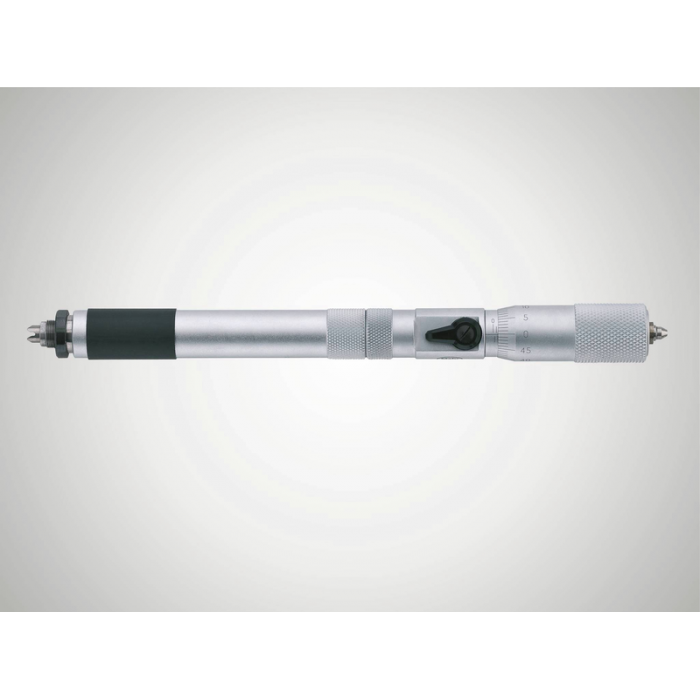

Micromar 44 CZ

Micromar 44 CZ

• Art. no. 4168030
• Ideal for measuring internal threads with large diameters
• DIN 863-4
• Measuring range mm: 200 - 225 mm mm
• Graduation value mm: 0.01
• Package contains: measuring head 44 CZ with end piece, case
• Operating and display units with satin chrome finish
• Measuring head and end piece with mounting bore for interchangeable measuring anvils
• Rigid, lightweight tubular construction
• Stainless spindle is hardened throughout and ground
• Locking device
• Interchangeable extension 44 Cv contains cylindrical gage rods that are spring mounted in protective sleeves for the extension of the measuring range
• Protection sleeves have a satin chrome finish

Datasheet

For more information please visit the official Mahr website.
