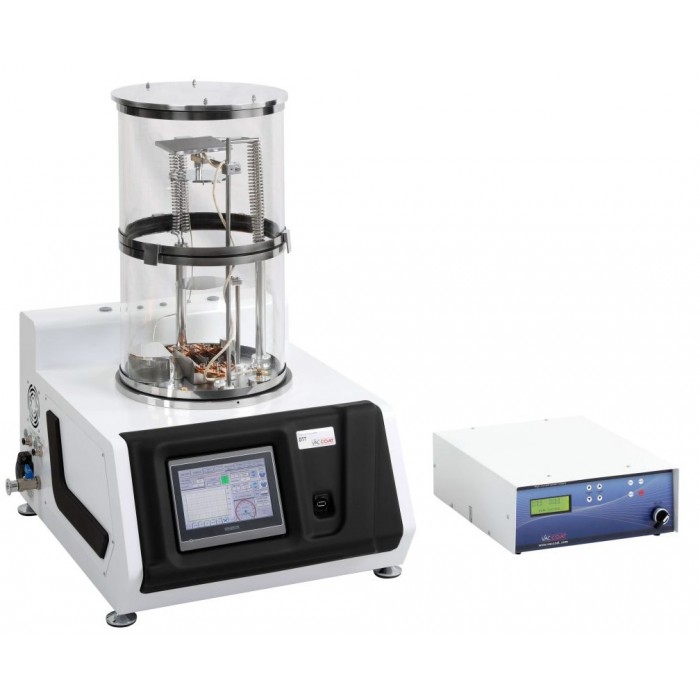

DESK THERMAL EVAPORATOR – DTT

Features

• Multi-layer thermal coatings
• Plasma Cleaning
• Large format chamber
• High vacuum turbomolecular pump
• Two stage rotary vane backing pump, 4m3/h
• Full range vacuum gauge
• Evaporation source (boat/basket/coil) selection for multilayer thin film deposition
• Co–evaporation to form alloy films (optional)
• Quartz crystal monitoring system for real time thickness measurement (1 nm precision)
• Manual or automatic Timed or Thickness deposition
• Intuitive touch screen to control the coating process and rapid data input
• User friendly software that can be updated via network
• Equipped with electronic shutter
• Equipped with rotary sample holder (optional)
• 2 inches, 500 °C substrate heater (optional)
• Two-year warranty
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

Specifications

• Multi boats, baskets and coils installation
• Records and plots coating parameters graphs
• Transfers the curves and deposition process data by USB port to PC
• Automatic control of the power of coating independent of pressure
• High current electrical feedthrough
• 0-100 high current, protected against short circuit, DC power supply
• Utilities: 220V-240V, 50/60 HZ, 16A
• Dimensions: 60 Cm H × 65 Cm W × 50 Cm D
• Shipping weight: ~ 60 kg

View more details in official's Vac Coat website.
