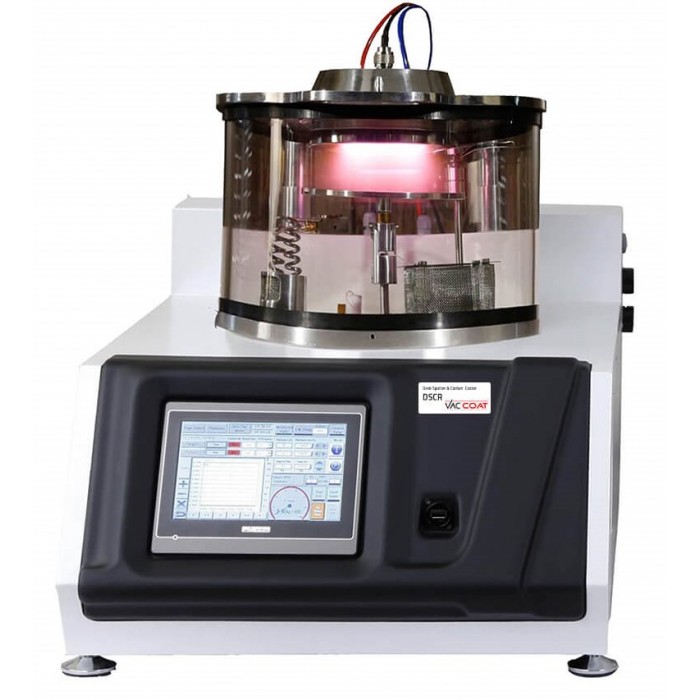

DESK SPUTTER AND CARBON COATER – DSCR-300

Features of Desk Sputter and Carbon Coater

• Easy to operate
• User friendly software to both full-automatic and semi-automatic control
• Intuitive touch screen to control the coating process and rapid data input
• Easy loading and unloading of specimens
• Repeatable film thickness depositions
• Precise reproducible coatings
• High resolution fine coating (order of 2nm Gold grain)
• Low voltage sputtering
• GLAD Sputtering
• Plasma Cleaning
• No cooling system is required for thin layers
• Carbon coating in both flash and pulse modes
• Dual carbon fiber for thicker layer deposition
• Two-year warranty
• CE conformity
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

Specifications of Desk Sputter Coater

• 300 mm OD x 150 mm pyrex cylinder chamber
• Dimensions: 58 Cm H x 50 Cm W x 63 Cm D
• 3 or 4 inches magnetron cathode
• Shipping Weight: 42Kg
• Utilities: 220V-240V, 50/60HZ, 10A
• 200 Watt DC switching power supply
• Ultimate Vacuum: Less than 5*10-2 Torr
• Transfer the curves and sputtering process data by USB port to PC
• Two-stage, direct drive 12 m3/h, rotary vane pump
• Thermocouple vacuum gauge
• Quartz crystal thickness monitor with precision of 1nm
• Automatic venting valve
• Saving the last 300 coatings that carried out
• Vacuum pump weight 20 Kg
