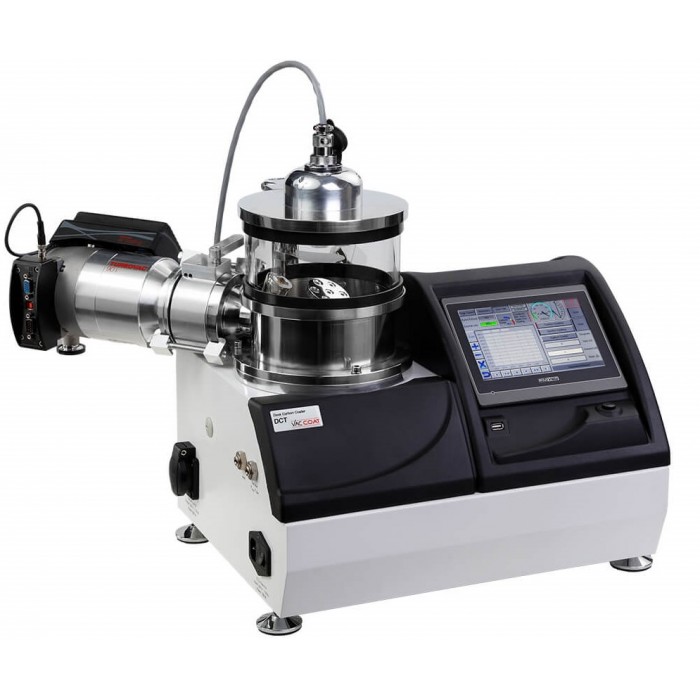

TURBO-PUMPED CARBON COATER – DCT

Features of Turbo-Pumped Carbon Coater

• Quartz crystal thickness monitor with precision of 1nm and resolution of 1 Å
• Pulsed or flash carbon fiber coating modes
• Intuitive touch screen to control and monitor the coating process with a capability of rapid data input
• User friendly software that can be updated via network
• Able to record and plot coating parameters graphs
• Easy-to-change specimen stages (rotation stage as standard)
• Two-year warranty
• CE conformity
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

Specification of DCT

• High vacuum turbo pump 90 l/s (Leybold)
• Two stage rotary vane vacuum pump as a backing pumps
• Full range vacuum gauge (Leybold)
• 170 mm OD x 140 mm vacuum chamber
• 0-25 A switching pulsed DC power supply
• Ultimate Vacuum: Less than 7 x10-7 torr
• Dimensions: 450 x 500 x 370 mm(H * W & D)
• Utilities: 220V-240V, 50/60HZ, 10A
• Intuitive touch screen with colored display unit
• Sample holder with planetary rotation
• Plasma Cleaning
• Electronic shutter
• Automatically controlled coating independent of pressure
• Precision metering valve for fine control of vacuum pressure
• Real time plots of coating parameters
• Simple transfer of coating data plots via USB port to PC
• Shipping Weight: 46 Kg
