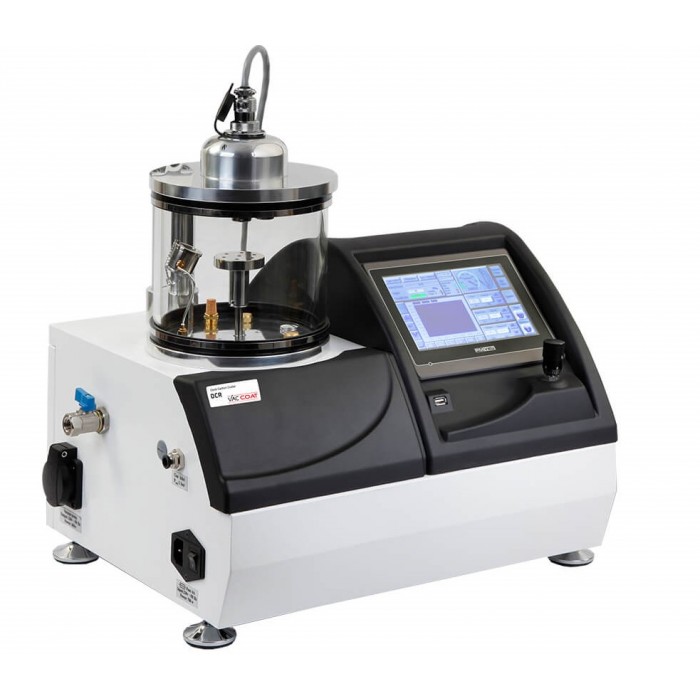

DESK CARBON COATER – DCR

Features of Desk Carbon Coater – DCR

• Quartz crystal monitoring system used for real time thickness measurement (1nm precision)
• Pulsed or flash carbon fiber coating modes
• Intuitive touch screen to control and monitor the coating process with a capability of rapid data input
• User friendly software that can be updated via network
• Able to record and plot coating parameters graphs
• Easy-to-change specimen stages (rotation stage as standard)
• Two-year warranty
• CE conformity
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

Specification of Desk Carbon Coater

• Two-stage, direct drive 4 m3/h, rotary vane pump
• Ultimate vacuum: Less than 50 mtorr
• 170 mm OD x 140 mm pyrex cylinder chamber
• 0-25A switching pulsed DC power supply
• Dimensions: 450 x 500 x 370 mm(H x W x D)
• Utilities: 220V-240V, 50/60HZ, 10A
• Rotational sample holder with adjustable tilt and height
• Sample holder with planetary rotation (Optional)
• Electronic shutter
• Manual or full automatic control
• Precision electronic leak valve for fine control of vacuum pressure
• Real time plots of coating parameters
• Simple transfer of coating data plots via USB port to PC
• Shipping weight: 46 Kg
• Plasma Cleaning
