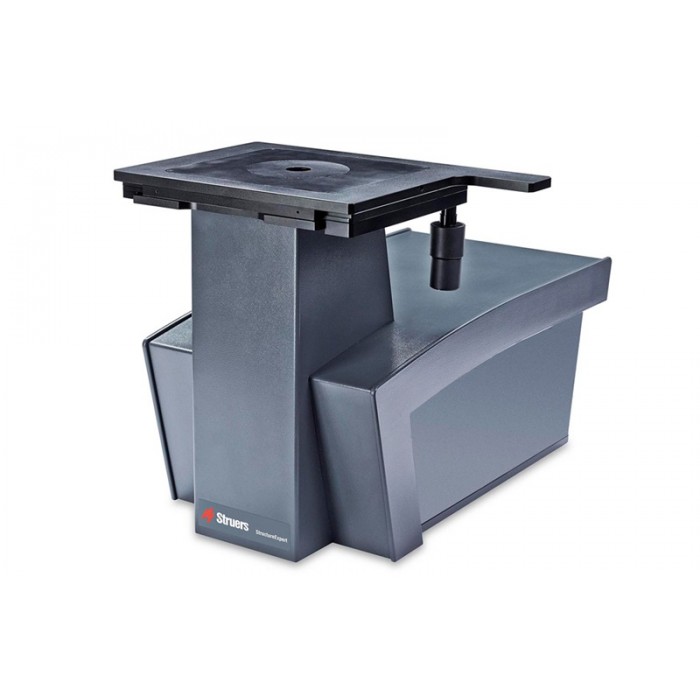

StructureExpert

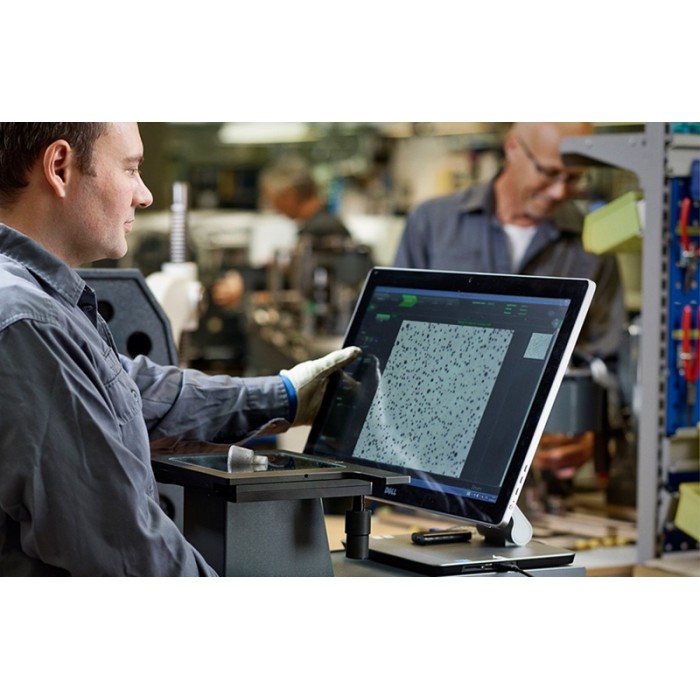

Designed for both the production and lab environments, StructureExpert is an all-in-one solution dedicated to a particular application. Challenging conventional technology, StructureExpert does away with conventional and time-consuming positioning and adjustments, enabling reliable verification of a specimen within 30 seconds and delivering critical quality control data in line with the production line.

Dedicated imaging system for verification of microstructures and dimensional measurements. Based on a workflow oriented user interface for easy and repeatable operation. Includes software for basic manual measurements and reporting. Dedicated application oriented modules are ordered separately. Consists of compact housing, a LED lighting system, and motorized zoom camera.

With auto-focus and automatic illumination adjustment. Field of view 6.24 mm to 294 μm, equivalent to 25x - 500x magnification. Measurement resolution 0.11 μm. Includes manual xy-stage capable of supporting 3.0 kg, e.g. large specimen holders. Includes calibration plate and necessary cables. Accredited certificate for calibration plate is optional. PC and monitor are required.
