PSM

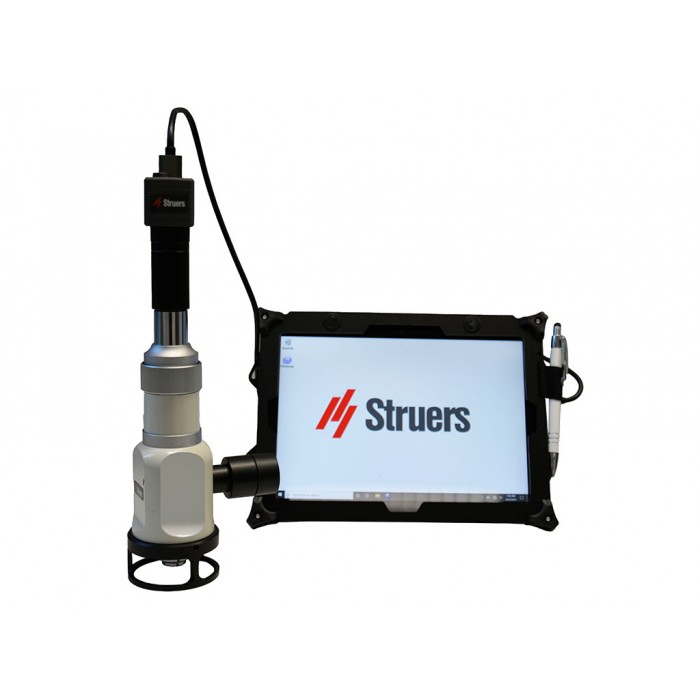

With its CMOS sensor, the 3 megapixels digital camera for PSM microscopes is aimed at professionals with high demands in terms of image quality, dynamic and sensitivity. Dedicated to optical microscopy, it is used in the metallography laboratory or on site.

The digital camera for PSM microscopes is a good compromise between speed and resolution. Its sensor delivers a resolution of 3.2 megapixels. Its high definition digital sensor provides sharp images with low noise, and fast live image for easy focusing.

In combination with Perfect Image Lite software, microscope objectives are easily calibrated, and a scale bar can be automatically merged in the captured image. All cameras parameters can be saved and recalled for maximal ease of use and reproducible images. Measurements on the live or captured images are available, such as length, area, angle and alike. Advanced versions of the software are available for more demanding applications such as grain sizing, cast iron analysis and alike.

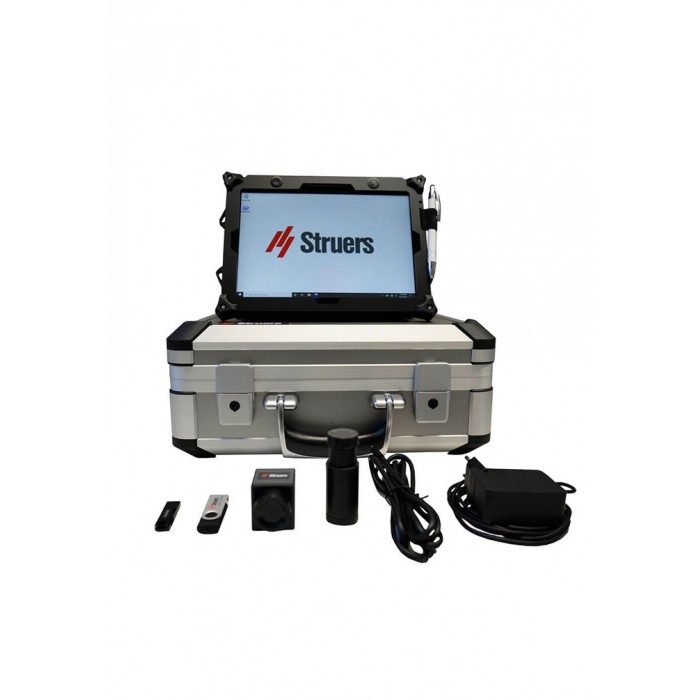

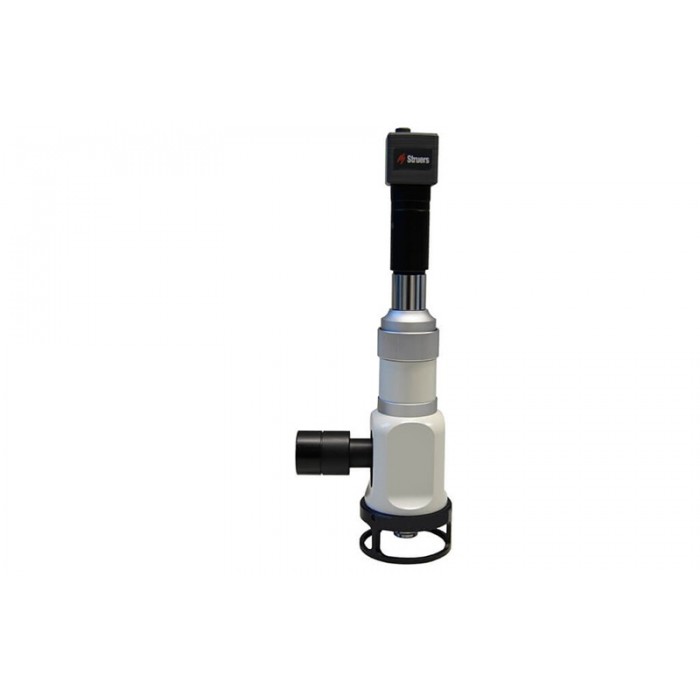

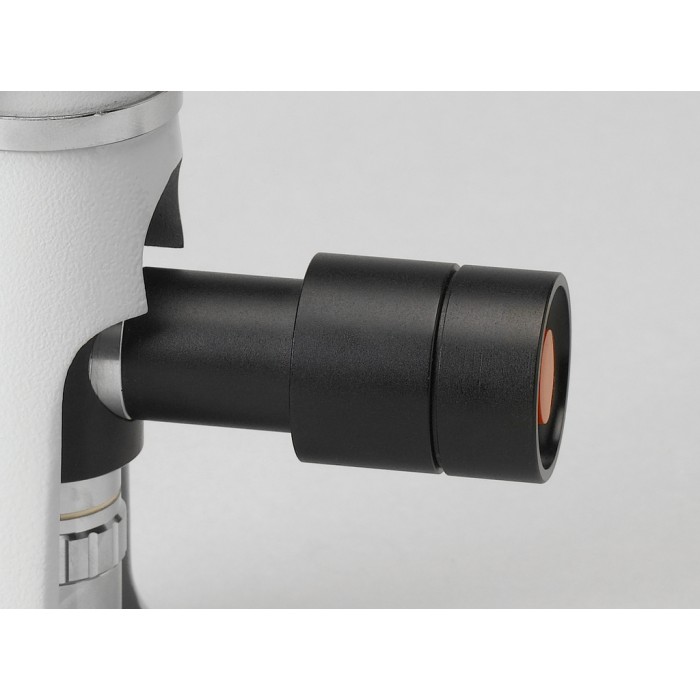

Portable microscope with battery-powered LED illumination. Complete with 10x eyepiece and 10x objective lens. Camera option, Camera connection kit, 20x/40x objective lenses. Measuring eyepiece and Plate micrometer are ordered separately.
