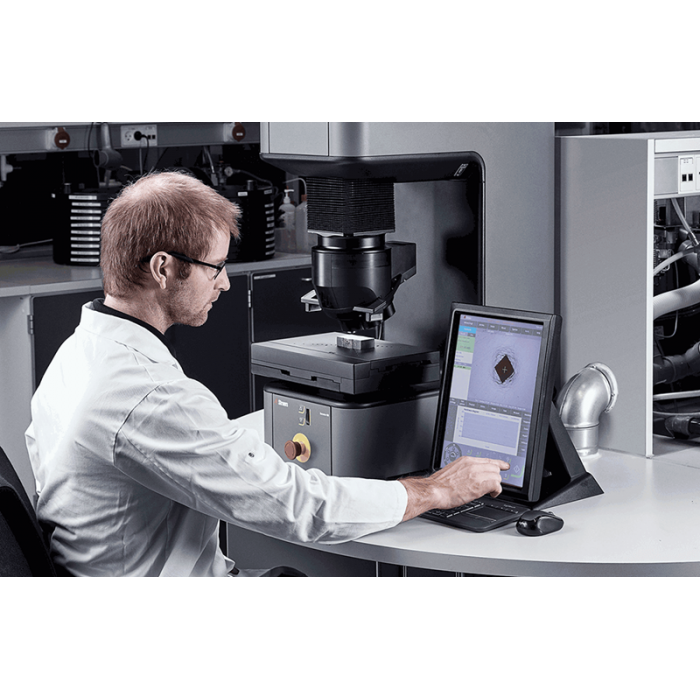

Duramin-100

Duramin-100 range combines both a micro and universal tester. The top model covers a wide load range from 50 gf to 250 kgf, and includes a motorized XY-stage (Duramin-100 A2 and Duramin-100 AC3), motorized test head, overview camera, laser guide, and eight-position turret. Duramin-100 is available in three load ranges and is suitable for Vickers, Brinell, and Rockwell hardness testing. Add-on modules include Kc fracture measurements, mapping, and weld measurements.

Duramin-100 – Fully Automatic Micro/Macro/Universal Tester

• Methods: Vickers, Knoop, Brinell and Rockwell hardness testing
• Load ranges: 50 gf - 62.5 kgf, 50 gf - 120 kgf, 50 gf - 250 kgf
• Fully automatic micro/macro/universal tester
• Automatic eight-position turret

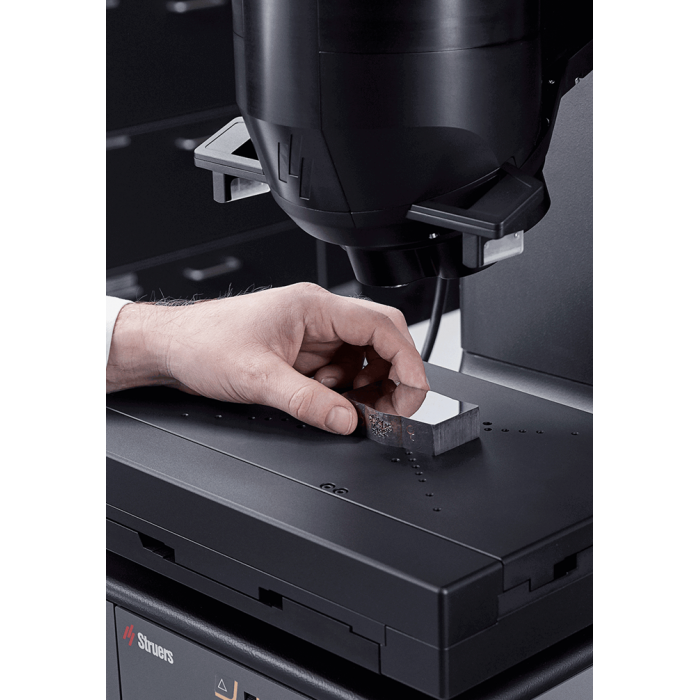

• Motorized test head

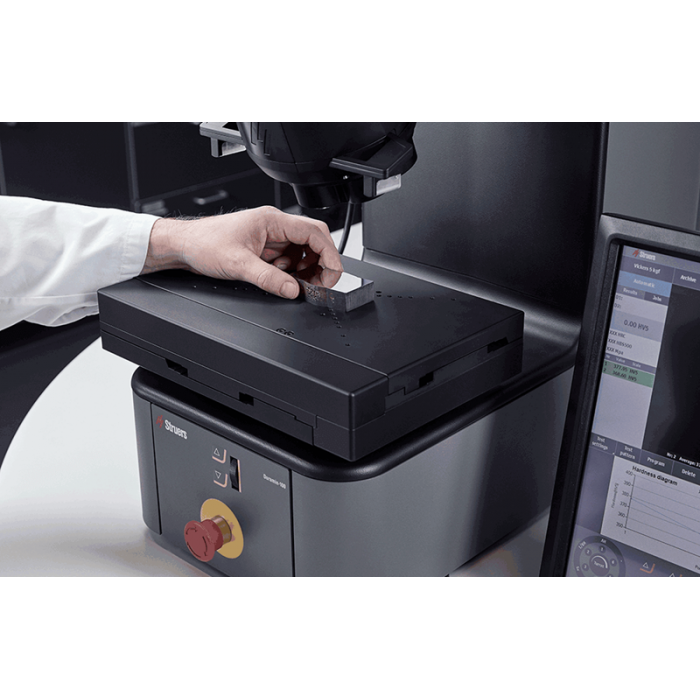

• Motorized XY-stage (Duramin-100 A2 and Duramin-100 AC3)
• Automatic illumination
• Automatic height adjustment
• Anti-collision system
• Overview camera
• Laser positioning system
• Report editor
• Embedded PC, operated by mouse or touchscreen
• Other features include mapping, edge detection, welding measurement, fracture measurement, and Jominy testing.
