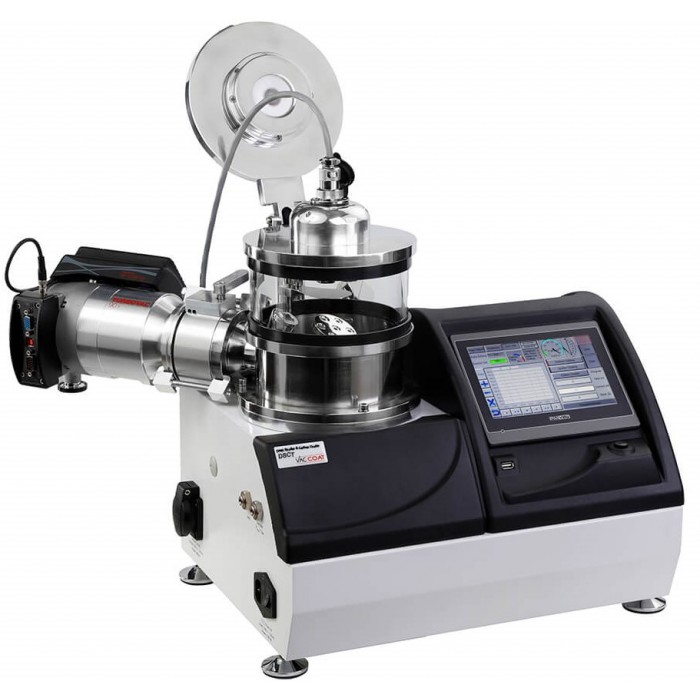

SPUTTER COATER AND CARBON/THERMAL EVAPORATOR – DSCT-T

DSCT-T Features

• High Vacuum Turbomolecular Pump 90 l/s (Leybold)
• Two stage Rotary Vane Pump or diaphragm pump as a backing pump
• Full range vacuum gauge (Leybold)
• Carbon fiber evaporation head
• Carbon rod evaporation head
• Thermal evaporation head
• Pulsed or flash carbon fiber coating modes
• Quartz crystal thickness monitor with precision of 1nm and resolution of 1 Å
• Intuitive touch screen to control the coating process and rapid data input
• User friendly software that can be updated via network
• Controls coating rate to achieve finer grain structures in sputtering process
• Manual or automatic Timed and Thickness sputtering
• GLAD Sputtering
• Plasma Cleaning
• Able to record and plot coating parameters graphs
• Equipped with electronic shutter
• Easy-to-change specimen stages (standard rotation or planetary rotation)
• Two-year warranty
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

DSCT-T Specifications

• Ultimate Vacuum: Less than 7 x10-7 torr
• Controls the rate of sputtering to achieve finer grain structure
• Automatically controls the power of sputtering independent of pressure
• Real time plots of coating parameters
• Able to record and plot coating parameter graphs
• Transfers curves and deposition process data by USB port to PC
• Electronic shutter
• 170 mm OD x 140 mm vacuum chamber
• Utilities: 220V-240V, 50/60HZ, 16A
• Shipping Weight: 42kg
