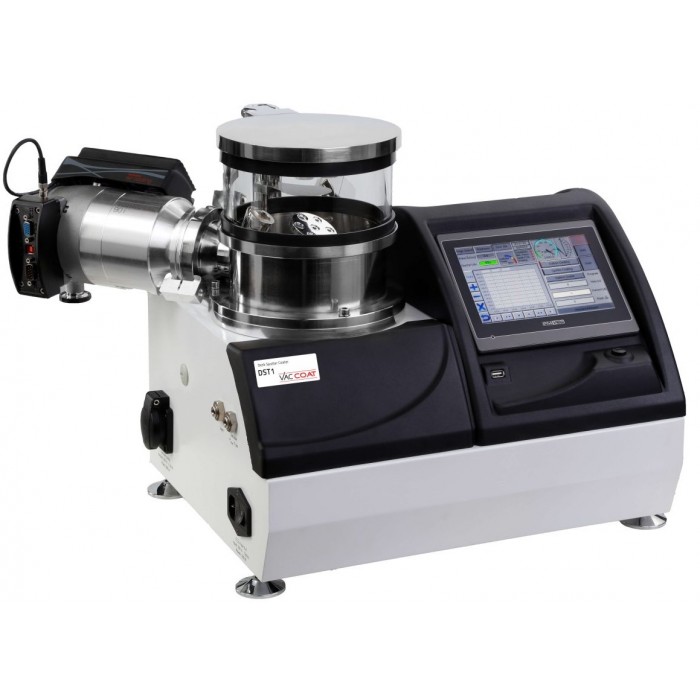

HIGH VACUUM DESK SPUTTER COATER – DST1-170

Features of High Vacuum Sputter Coater

• High vacuum turbomolecular pump 90 L/S (Leybold)
• Two stage rotary vane vacuum pump as a backing pump
• Full range vacuum gauge (Leybold)
• ISO-KF 63 butterfly valve
• DC power supply 80 W
• Quartz crystal thickness monitor with precision of 1nm and resolution of 1 Å
• Intuitive touch screen to control the coating process and rapid data input
• User friendly software that can be updated via network
• Controls coating rate to achieve finer grain structures
• Manual or automatic Timed and Thickness Sputtering
• GLAD Sputtering
• Plasma Cleaning
• Able to record and plot coating parameters graphs
• Equipped with electronic shutter
• Easy-to-change specimen stages (rotation stage as standard)
• Two-year warranty
• Vac coat Products are covered worldwide by both public and product Liability Insurance in case any property damage or personal injury happens caused by the Vac Coat systems.

Specification of Magnetron Sputter Coater

• Ultimate Vacuum: Less than 7 x10-7 Torr
• Controls the rate of sputtering to achieve finer grain structure
• Automatically controls the power of sputtering independent of pressure
• Electronic leak valve for Argon gas
• Able to record and plot coating parameter graphs
• Transfers curves and deposition process data by USB port to PC
• Utilities: 220V-240V, 50/60HZ, 16A
• Shipping Weight: 36kg

View more details in official's Vac Coat website.
